Daily Insights into Fertilizer Production Lines: Extrusion Granulator

2025-06-21

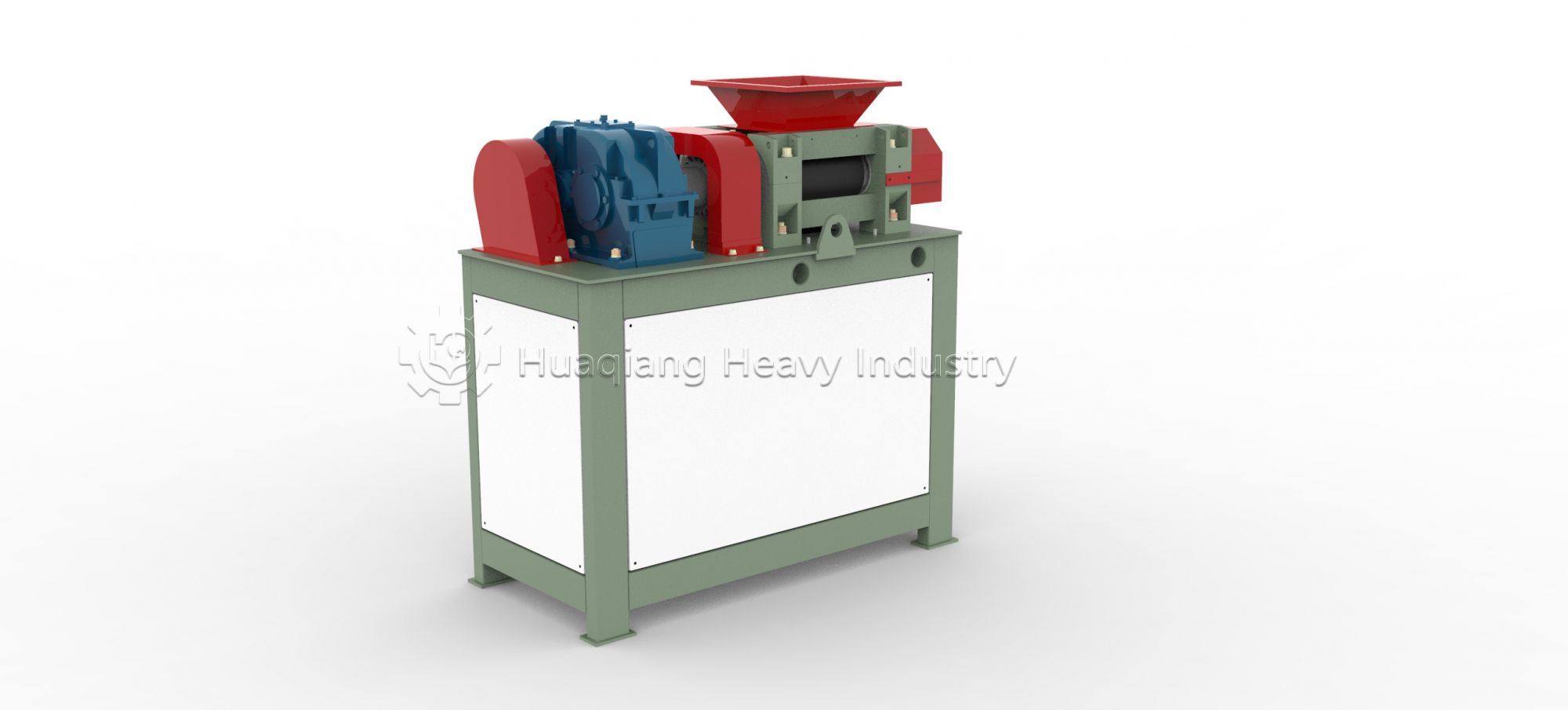

Extrusion granulators are key shaping equipment in fertilizer production, directly compressing powdered materials into granules without binders, serving as core equipment for high-concentration compound fertilizers.

1. Working Principle of Extrusion Granulators

The granulation process completes in three steps:

1. Feeding & Compression: Powder materials are forced into mold holes

2. Forming & Extrusion: Cylindrical granules form under high pressure

3. Cutting & Shaping: Rotating blades cut extruded strips into uniform granules

1Material Feeding

Powdered materials are evenly fed into the granulator through a feeder

2Compression

Materials are strongly compressed between rollers and die, forming strips through die holes

3Cutting

Rotating blades cut the extruded strips into uniform granules

4Discharge

Formed granules are discharged through the outlet to next process

 Working principle of extrusion granulator

2. Four Major Advantages of Extrusion Granulators

Advantage

Performance

Economic Benefit

Energy Saving

30-50% energy saved by eliminating drying process

15-20% production cost reduction

Material Adaptability

Handles high-concentration, hard materials

98% raw material utilization rate

Granule Quality

High strength, low breakage rate

95% premium product rate

Easy Operation

One-button start, automatic control

30% labor cost reduction

3. Combined Applications

Extrusion granulators can integrate with:

· Pre-treatment: Crushers and mixers

· Post-treatment: Coolers, screens, coating machines

· Parallel Systems: 3-5 units for large-scale production

4. 2023 Technological Advances

1. Smart Control: Real-time monitoring and auto-adjustment

2. Wear-resistant Materials: Tungsten carbide extends mold life 3x

3. Modular Design: 30-minute product changeover with quick mold replacement

References:

[1] "Fertilizer Production Equipment & Technology Manual" 2023 Edition

[2] IFA Extrusion Granulation Technology Report

[3] Bühler Group Extrusion Granulator White Paper
