Fertilizer Coating Machines: Core Technology in Modern Fertilizer Production

2025-06-17

Fertilizer coating machines are key equipment for producing slow-release fertilizers, forming uniform protective layers on fertilizer granules to achieve controlled nutrient release, significantly improving fertilizer efficiency while reducing environmental pollution.

What is a Fertilizer Coating Machine?

A fertilizer coating machine is specialized equipment designed to apply protective layers on fertilizer granules. It forms uniform film coatings through precisely controlled spraying and curing processes.

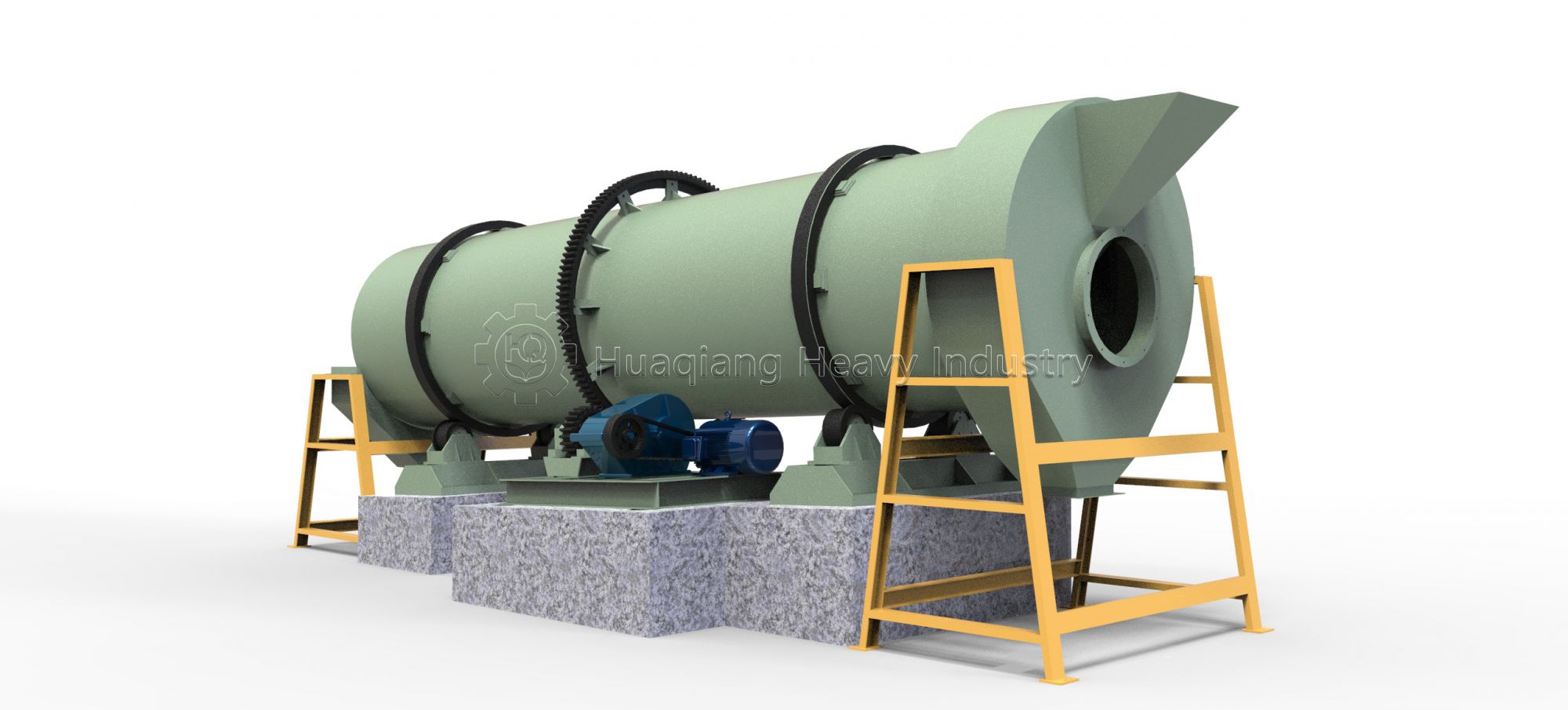

Fertilizer Coating Machine Structure Diagram

Fertilizer Inlet

Coated Outlet

Motor

Control Panel

Fertilizer Inlet

Coated Product Outlet

Coating Spray Nozzle

Drive Motor

Rotating Drum

Control Panel

Key Components Description:

Rotating Drum: Tumbling chamber where coating process occurs (typically inclined 2-5 degrees)
Coating Spray System: Consists of multiple nozzles for even coating application
Drive Motor: 5-15 HP motor with variable speed control (typically 10-30 RPM)
Inlet/Outlet: Designed for continuous operation with flow control gates
Support Frame: Heavy-duty steel construction with vibration dampeners
Control Panel: Manages rotation speed, spray rate, and temperature controls

The coating process typically uses polymer solutions, waxes, or dust suppressants applied at 1-5% of fertilizer weight.

Working Principles

Fertilizer coating machines operate based on three core principles:

1. Fluidized Bed Technology: Suspends fertilizer granules in air flow for uniform coating contact

2. Precision Spray System: Atomizes and evenly sprays liquid or molten coating materials

3. Controlled Curing System: Rapidly solidifies coating materials through temperature control

Benefits

Advantage	Benefit
Slow Release	Extended fertilizer efficiency, reduced application frequency
Reduced Loss	Minimized nutrient volatilization and leaching
Improved Efficiency	30-50% increase in nutrient utilization
Environmental Protection	Reduced agricultural non-point source pollution

Application Scenarios

· Slow-release fertilizer production lines

· Premium specialty fertilizer production

· Organic-inorganic compound fertilizer production

· Functional fertilizer additives (disease/pest control)

References:

1. IFA "Guidelines for Controlled-Release Fertilizer Production" (2022)

2. Zhang et al. "Advances in fertilizer coating technologies" (2021)
