A flat die pelletizing production line is an industrial equipment system widely used in biomass energy, feed processing, and organic fertilizer production. Its main function is to transform powdery, loose raw materials into high-density, regular cylindrical pellets through physical extrusion. This production line plays a vital role in the modern green circular economy due to its compact structure and strong adaptability to materials.
I. Working Principle of Flat Die Pelletizing Production Line
The core of a flat die pelletizing production line is the flat die pelletizer. Its workflow mainly includes: raw materials falling vertically into the pelletizing chamber from the top inlet, and being evenly distributed on the surface of the flat die (flat mold) under gravity. The pressure roller located above the die rotates under the drive of the main shaft, creating relative motion with the flat die.
Under this strong extrusion, the material is forcibly pressed into the die holes of the flat die. As the material accumulates in the die holes, high pressure and frictional heat gelatinize and shape the material. When the material is extruded from below the die holes, a cutter installed at the bottom of the die cuts it into pellets of a set length.
II. Key Links in the Core Production Process
A complete flat die granulation production line typically consists of the following systems:
Raw Material Pretreatment System: A crusher is used to crush large raw materials to a suitable particle size (usually below 3-5mm), and a dryer is used to adjust the material moisture content to the optimal range (generally 12%-18%).
Conveying and Conditioning System: A screw conveyor or bucket elevator smoothly feeds the material into a mixer or conditioner to ensure uniform material proportions. Steam is introduced when necessary to improve the material's plasticity.

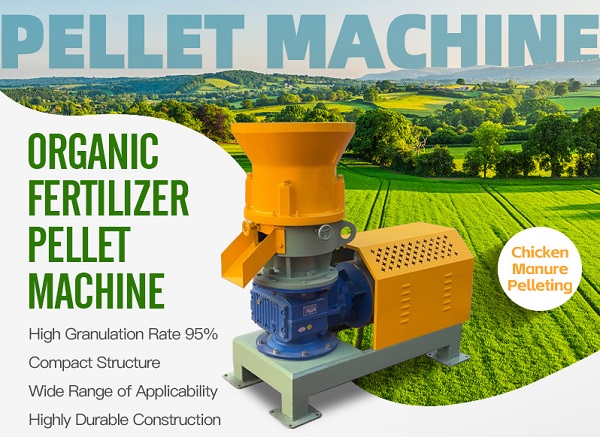

Pelletizing Main System: The flat die pellet machine is the core, completing the pressing and molding process.
Cooling and Screening System: Freshly produced granules are high in temperature and moisture, requiring a counter-current cooler to cool and dissipate moisture. They are then graded by a vibrating screen to remove dust and unqualified particles. Qualified granules are sent to the packaging silo.
The flat die pelletizing production line exemplifies the practical integration of advanced fertilizer production machine technology, offering a reliable, energy‑efficient solution for converting diverse organic and biomass feedstocks into high‑density cylindrical pellets. Whether configured as a dedicated poultry manure pellet machine for livestock operations, a multi‑purpose fertilizer flat die pellet machine for composted green waste, or as part of a comprehensive organic fertilizer granulator series, this system delivers consistent performance with minimal energy consumption and low maintenance. As a robust fertilizer granulator machine, it excels in organic fertilizer production granulation by directly processing high‑moisture (up to 40%) fibrous materials without pre‑drying or chemical binders, achieving a single‑pass pelletizing rate exceeding 95%. The entire production line—from crushing and conditioning to pelletizing, cooling, and screening—is engineered for continuous, trouble‑free operation, making it an ideal choice for small‑to‑medium scale producers seeking to enter or expand in the commercial organic fertilizer market. With its compact footprint, simple die‑change procedure, and ability to handle a wide range of raw materials (chicken manure, straw, rice husks, mushroom residues, etc.), the flat die pelletizing line stands as a versatile, cost‑effective backbone for sustainable agricultural waste recycling and green energy production.
